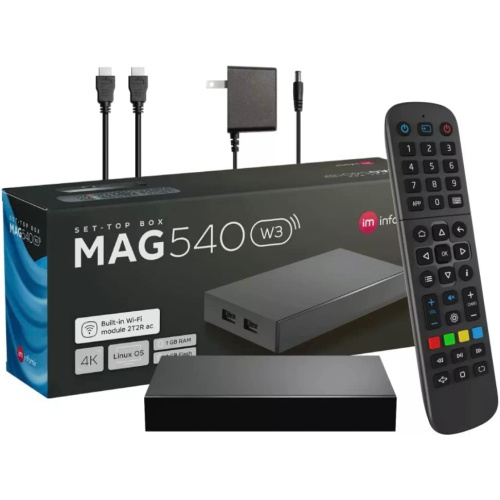

MAG 540W3
With MAG540/540w3, users can watch linear TV, video on demand, and content from IPTV/OTT providers.1 Also, the set-top box plays content within the local network and from external media. Operators can customize the device to give users a bespoke UI/UX and provide reliable technical support.
With the new Amlogic S905Y4-B chipset and ARM Cortex-A35 CPU, the device is 25% more powerful than the legacy MAG set-top boxes. The MAG540/540w3 hardware ensures a fast interface and smooth playback.
MAG540/540w3 supports AV1 and HEVC codecs to make sure the device plays 4K content without overloading the network2 While the H.264 codec requires 32 Mbit/sec to process such video, HEVC requires only 16 Mbit/sec.3
Chipset | Amlogic S905Y4-B |
Performance | 16 500 DMIPS |
Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
RAM | 1 GB LPDDR4 |
Flash memory | 4 GB eMMC |
Video modes | PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) |
Audio codecs | MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ |
Video codecs | MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main [email protected] High 2160p@60 fps (optional), H.264 AVC [email protected] 2160p@30 fps, XviD, 3D video support |
Video containers | TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB |
Image formats | JPEG, PNG, BMP, RAW |
Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions |
Playlist formats | M3U, M3U8, PLS, CUE |
Operating system | Linux 4.9 |
CAS/DRM | Upon request |
Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available. |
Digital ports | HDMI 2.1 |
Ethernet | 100 Mbps |
USB | USB 2.0 × 2 |
Wi-Fi | Built-in 2T2R ac (MAG540w3 only) |
Power adapter | DC 5V, 2A (DC 12V, 1А optional) |
